    Important: All components of FLAIM WSF should be recharged prior to each use.

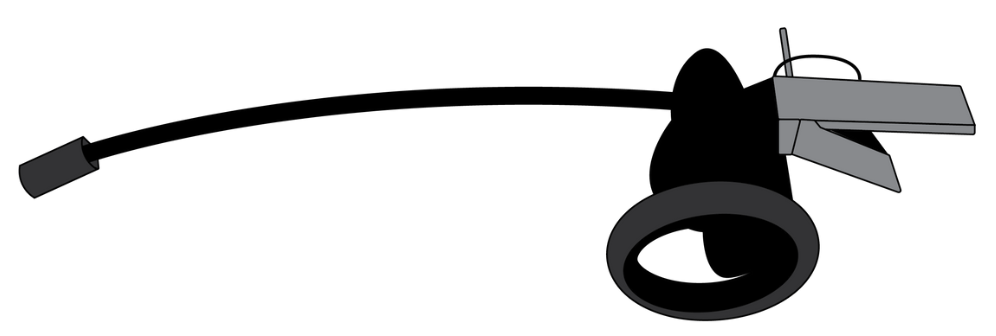

    The Hose Tracker attaches to the end of the hose and is used to interact with the menus, Launcher, Lobby and scenario.




    The Trigger Assembly is used to activate the equipped suppressant and interact with the Lobby and scenario.

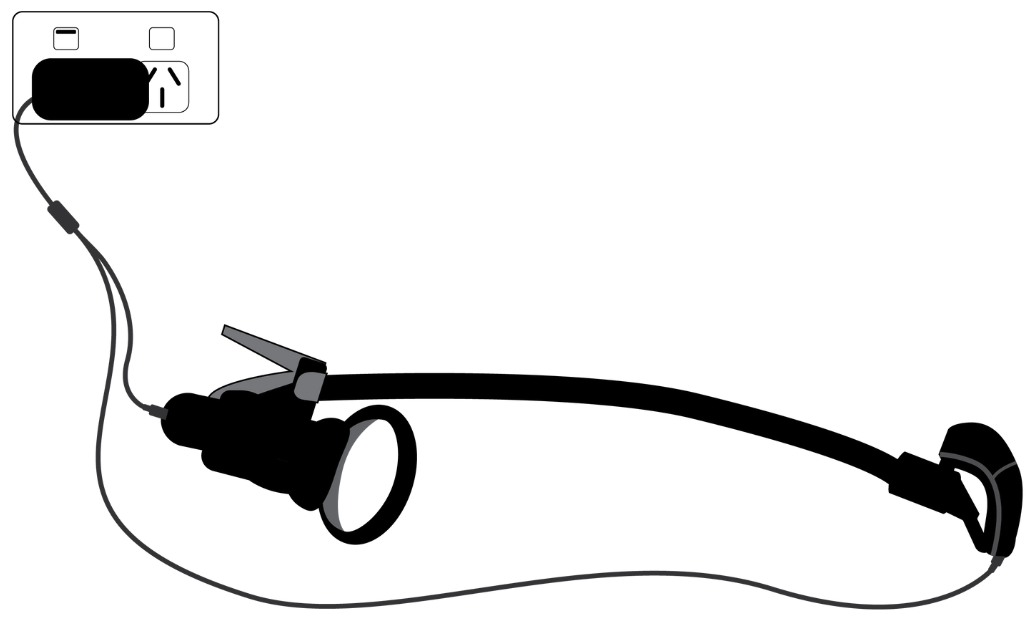

    Charging

    1. Remove the USB-C Y-Splitter cable from the case.
    2. Connect the USB-C Y-Splitter cable input to the USB Port on the International USB Charger and plug into a power outlet.

      3. Note: The USB-C end of the cable can be plugged into the VR Headset to charge the Hose Tracker and Trigger Assembly. However, the VR Headset must remain powered on – which may not be a suitable solution.

    3. Connect one USB-C Y-Splitter cable output to the Hose Tracker.
    4. Connect the other USB-C Y-Splitter cable output to the Trigger Assembly.

    5. The illuminated LED indicates the charging level.
    • An amber light means the devices are charging
    • A blue light means the devices are fully charged

      The hose tracker and the trigger assembly should charge within 1 hour and last approximately 4 hours of use.


    Controls

    Important: Ensure both the Trigger and Tracker are powered off prior to packdown. If in sleep mode, movement activates them and they may lose significant charge over time.

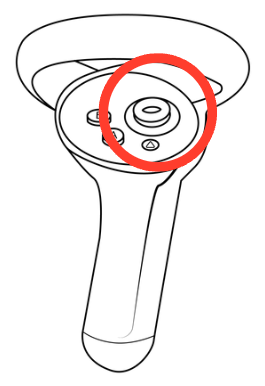

    Controller: Press and hold the △ button to turn on/off the controller.

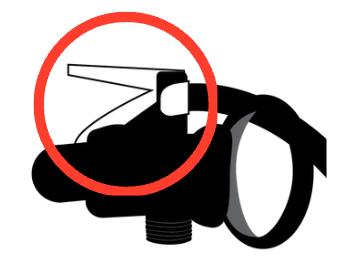

    Extinguisher Trigger: Press the handle to confirm selections and expel suppressant.



    Hose Tracker: Press and hold the △ button to turn on/off the controller.


    Hose Tracker: Use to activate the headset VIVE menu, the launcher, scenario selection and teleport function.
