Step 1: Turn on the FLAIM receiver

1. Remove the FLAIM receiver and HDMI cable from the case.


2. Connect the HDMI cable to the HDMI end of the FLAIM receiver.
3. Plug the HDMI end into the HDMI port on the TV / monitor.
   Note: If using the monitor supplied, connect the HDMI micro adapter to the HDMI socket.
4. Plug the USB lead into the USB port on the TV / monitor.
   Note: If using the monitor supplied, connect the USB A to USB C Y splitter cable into the monitor and FLAIM receiver. Use the international USB adaptor.


5. A white light will illuminate on the FLAIM receiver once powered.


Important: Certain TVs, monitors, or projectors might not provide sufficient power through their built-in USB port. If the indicator light is off or you are experiencing poor image quality, it likely means that the USB port doesn't have enough power.

In such cases, please use the provided international USB adaptor plugged into a power outlet.

 Step 2: Ensure the display is sourced correctly

1. Turn on the TV / monitor.
2. Select the source on the TV / monitor.
   The 'Ready to Connect' screen should display on the TV / monitor.


Step 3: Connect via FEX Headset

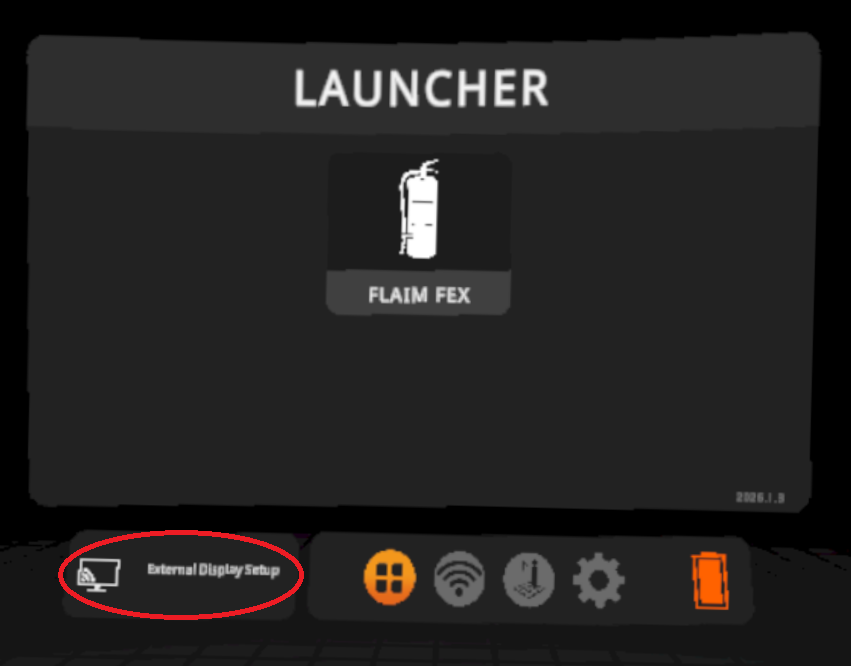

From FEX.2026.1.1 onwards, casting can be activated at any time. This includes within the FEX app, the FLAIM Launcher and even during a simulation.

1. Pull up the options menu by either:
2. 1. Clicking on the indented button on the left hand side of the VR goggles

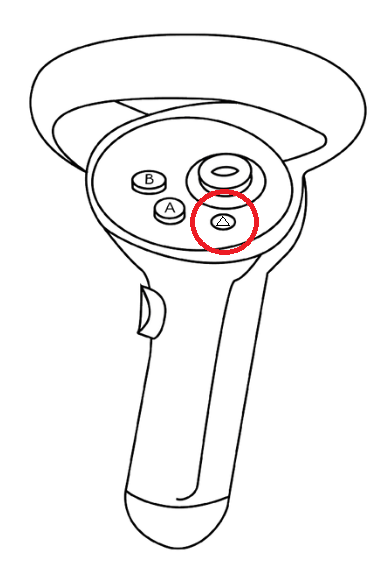

   2. Or clicking the triangle button on the Right-hand controller (embedded in the extinguisher handle)

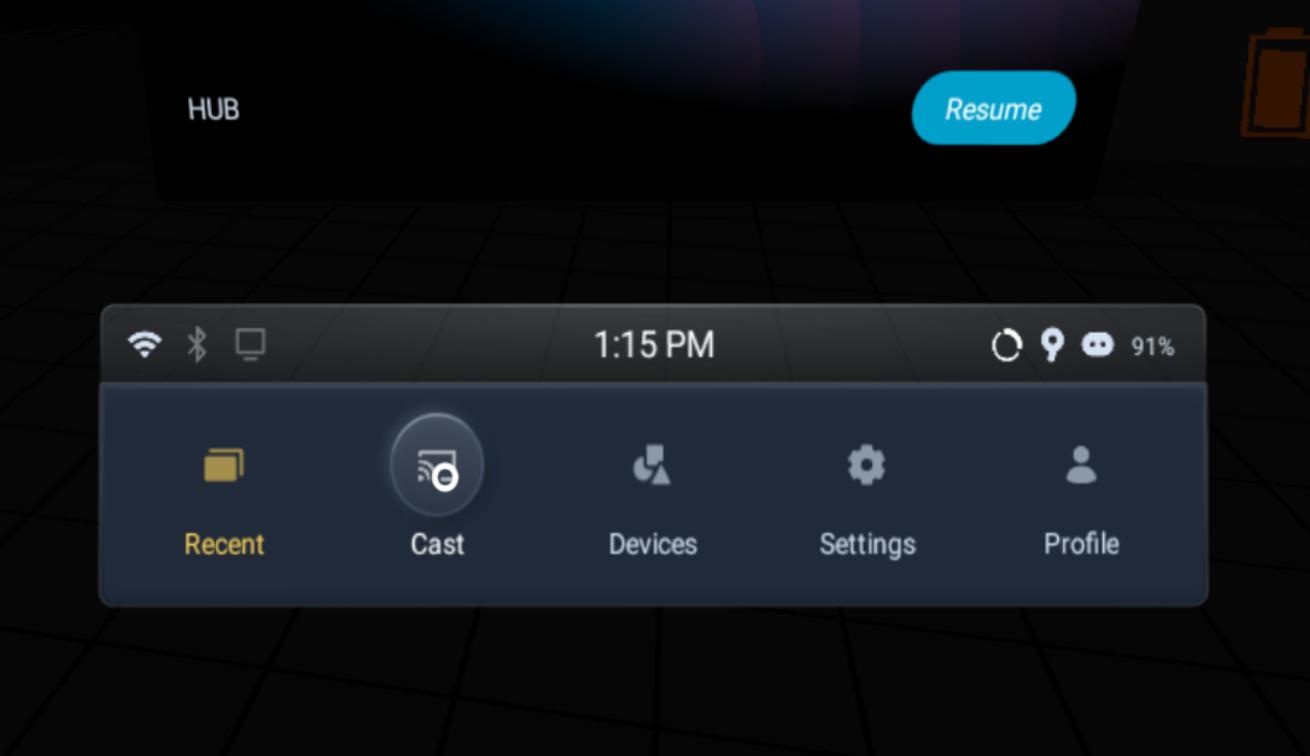

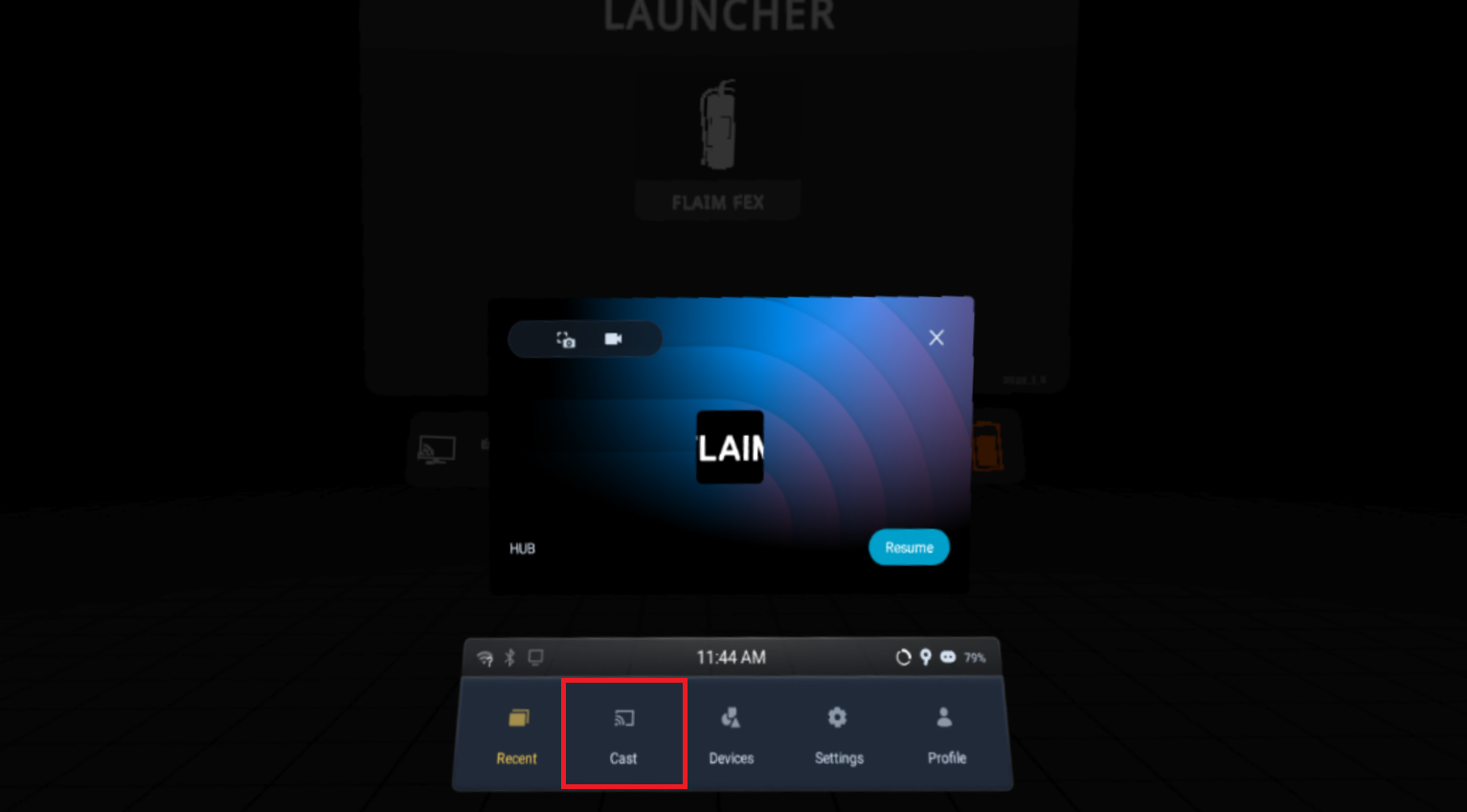

3. Along the bottom of this menu you will see the Cast button > click this

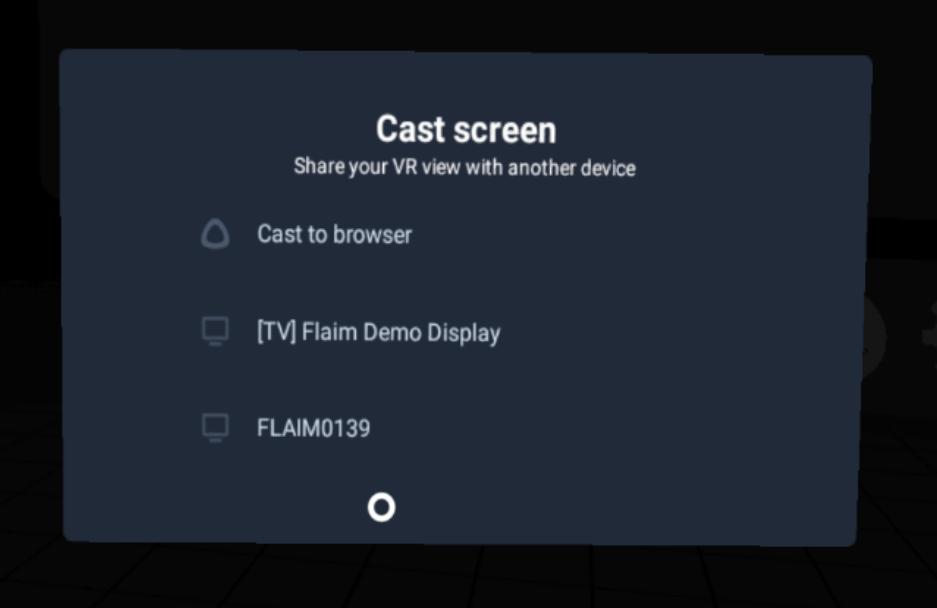

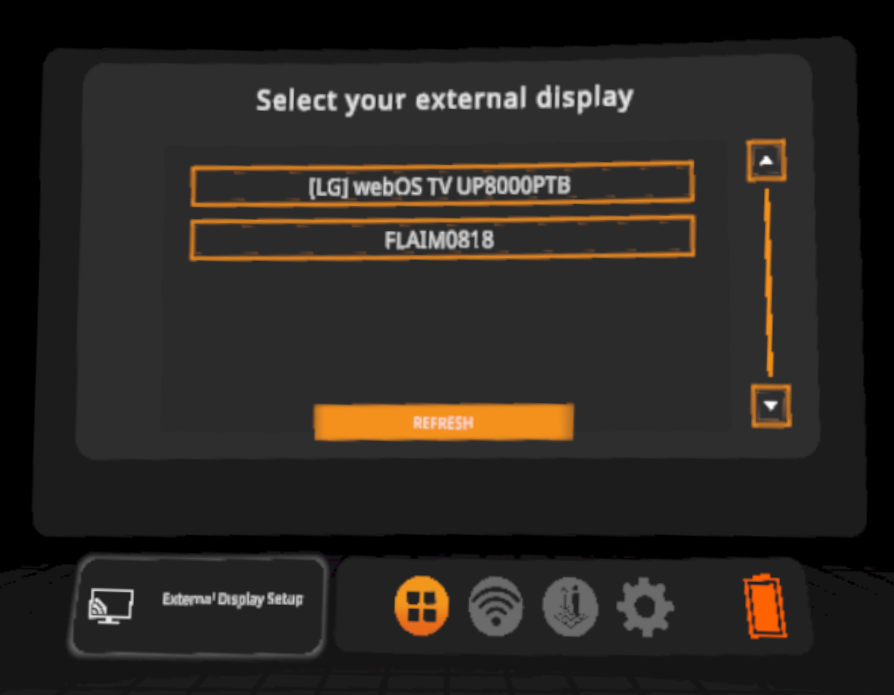

4. You will now be given the option to select where to Cast your screen to.
5. 1. If you are using a FLAIM HDMI receiver > Click on the matching FLAIM serial.
   2. If you would like to cast to browser > Click Cast to browser > enter the shown URL into your browser.
   3. If you are casting to your own receiver > Click on the name of your device
