Calibrating the Nozzle

1. To begin, launch the FLAIM Trainer iPad app. Select New Session. You may enter student information or just leave the fields blank.

2. Select Start Simulation when ready.
3. If you have not already done so, read through the warning and select Accept.

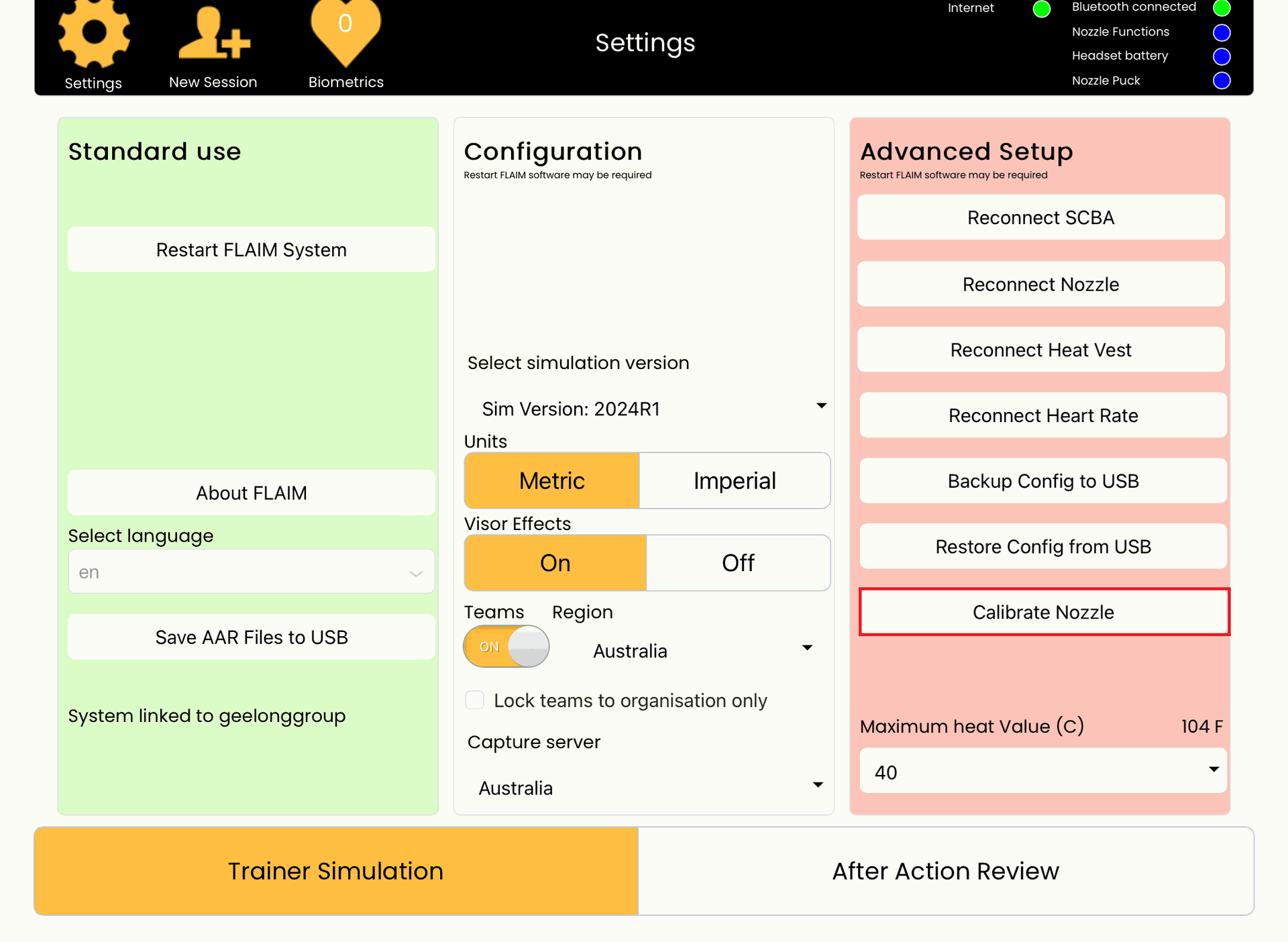

4. Select the Settings cog ⚙️ icon in the top left corner

5. Under 'Advanced setup', press the Calibrate Nozzle button.

6. Follow the instructions on screen to recalibrate the nozzle.
7. Once completed, press the Restart FLAIM System button under 'Standard use'. This saves all changes to the system. Then, select the Trainer Simulation button in the bottom left corner to return to the main facilitator view.


After a relaunch, the controller should be recalibrated.
