Re-Pair a Heart Rate Monitor

Note: Reconnecting a Heat Vest should only be performed under the direction of a FLAIM Customer Success team member.

For the following article, we will be using the Rhythm Armband Heart Rate Monitor that comes as standard with the FLAIM Trainer.

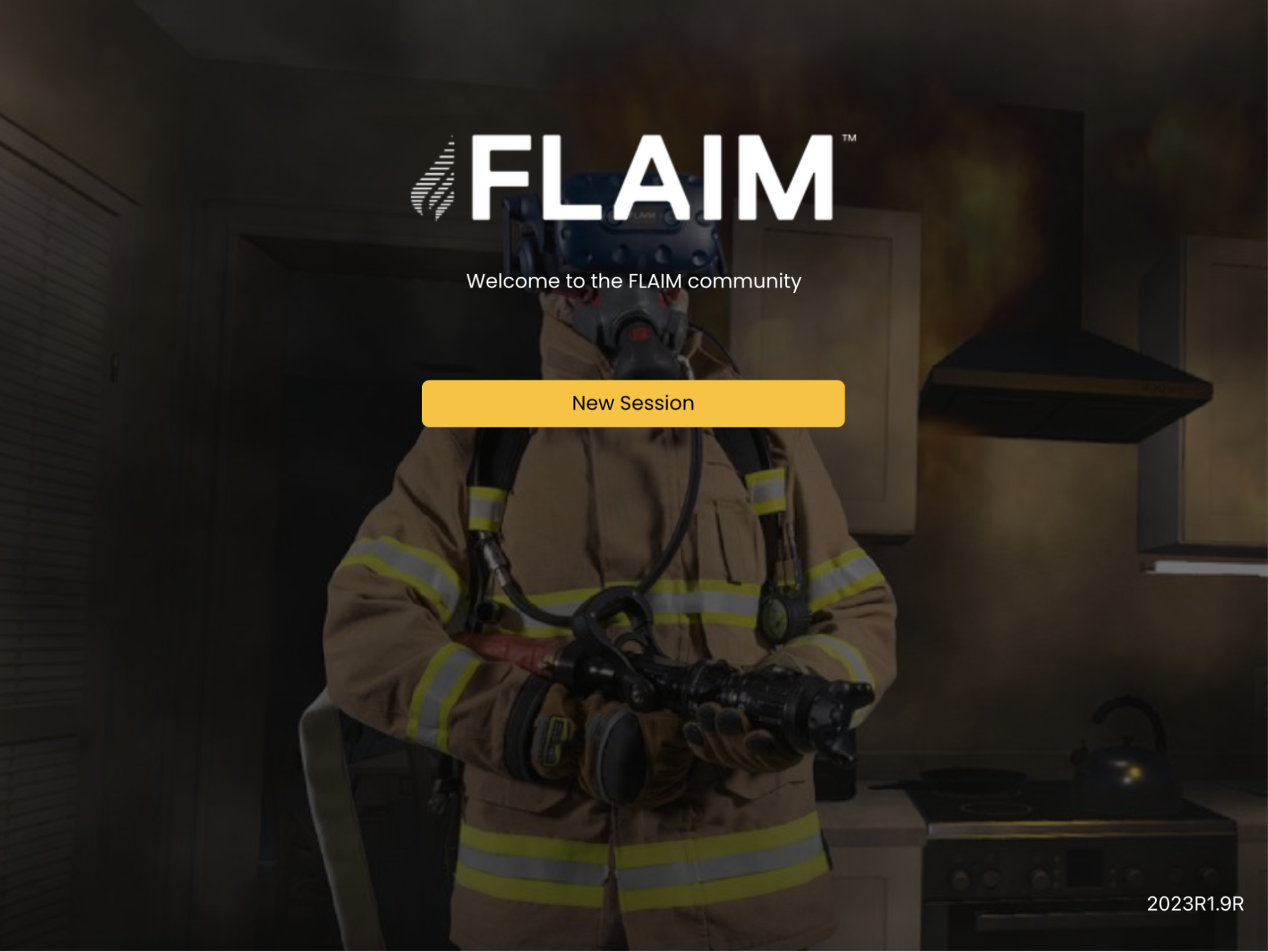

To begin, launch the FLAIM Trainer iPad app. Select New Session. You may enter student information or just leave the fields blank. Once you're ready, select Start Simulation.
If you have not already done so, read through the warning and select Accept if you are ready to continue.
Press Settings icon in the top left corner.

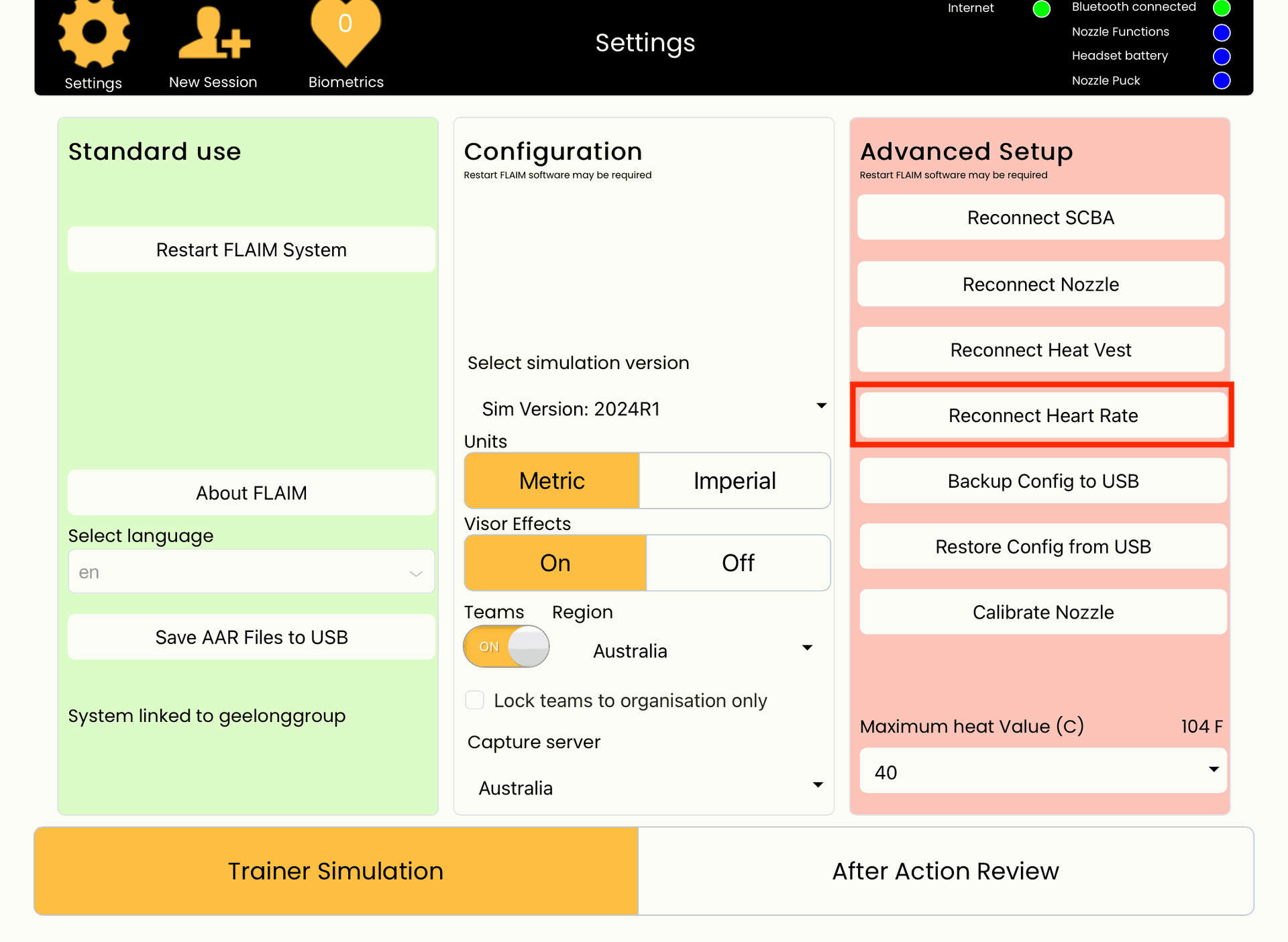

On the right side, select the option for Reconnect Heart Rate.

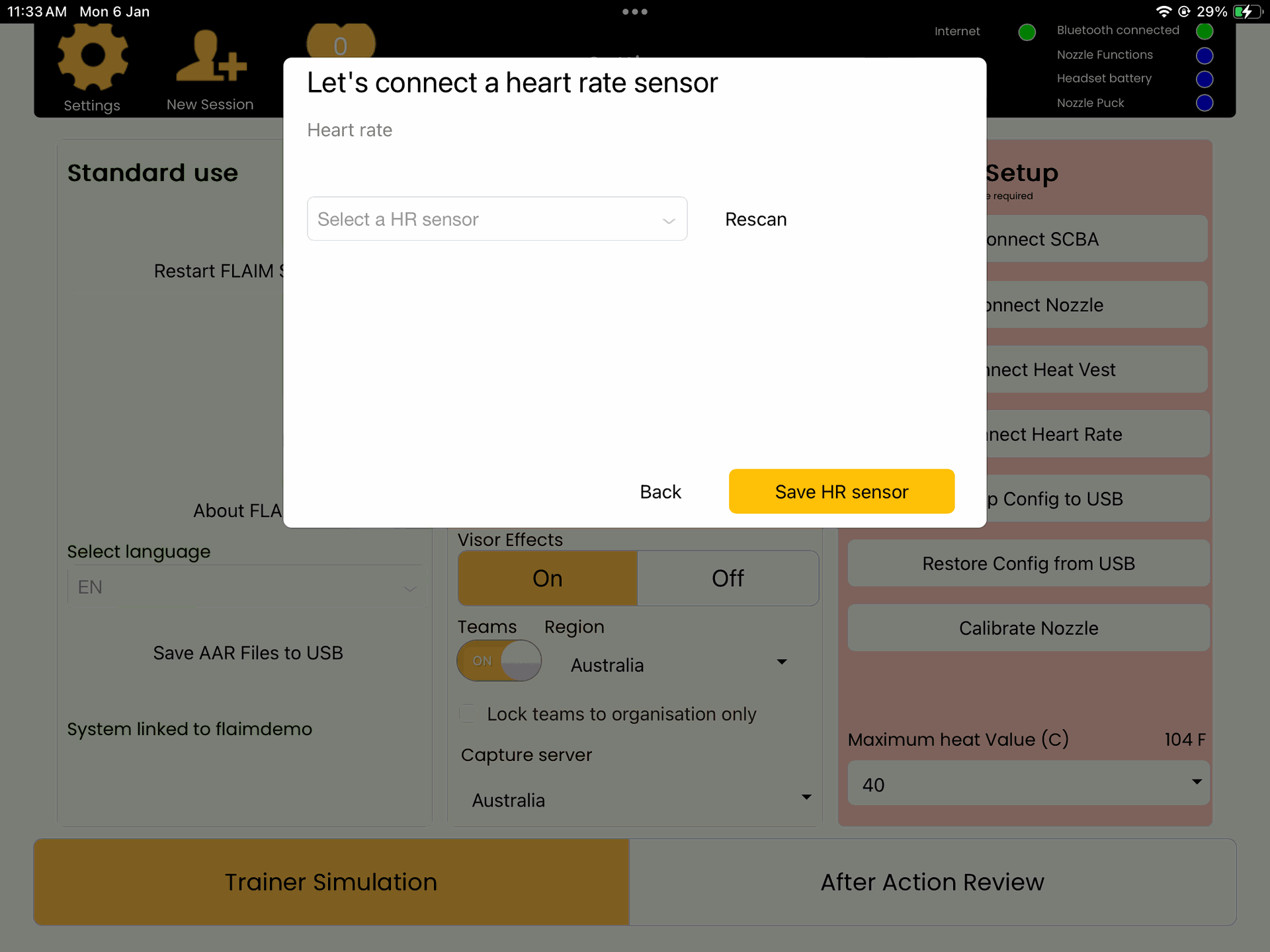

At the next screen, use the drop-down menu and scroll down to find your Bluetooth Heart Rate monitor (if you are using the Rhythm Armband Heart Rate Monitor, the device name will begin with "R+2.0"). Select your Heart Rate monitor from the list and press Save HR Sensor in the bottom right corner.
To confirm that the monitor is now selected, choose the option for Reconnect Heart Rate once again. Confirm that your device is listed besides "Current Connected Sensor" at the top. If it is not, return to Step 5. Once you have confirmed that your Heart Rate monitor is connected, select the Back button.

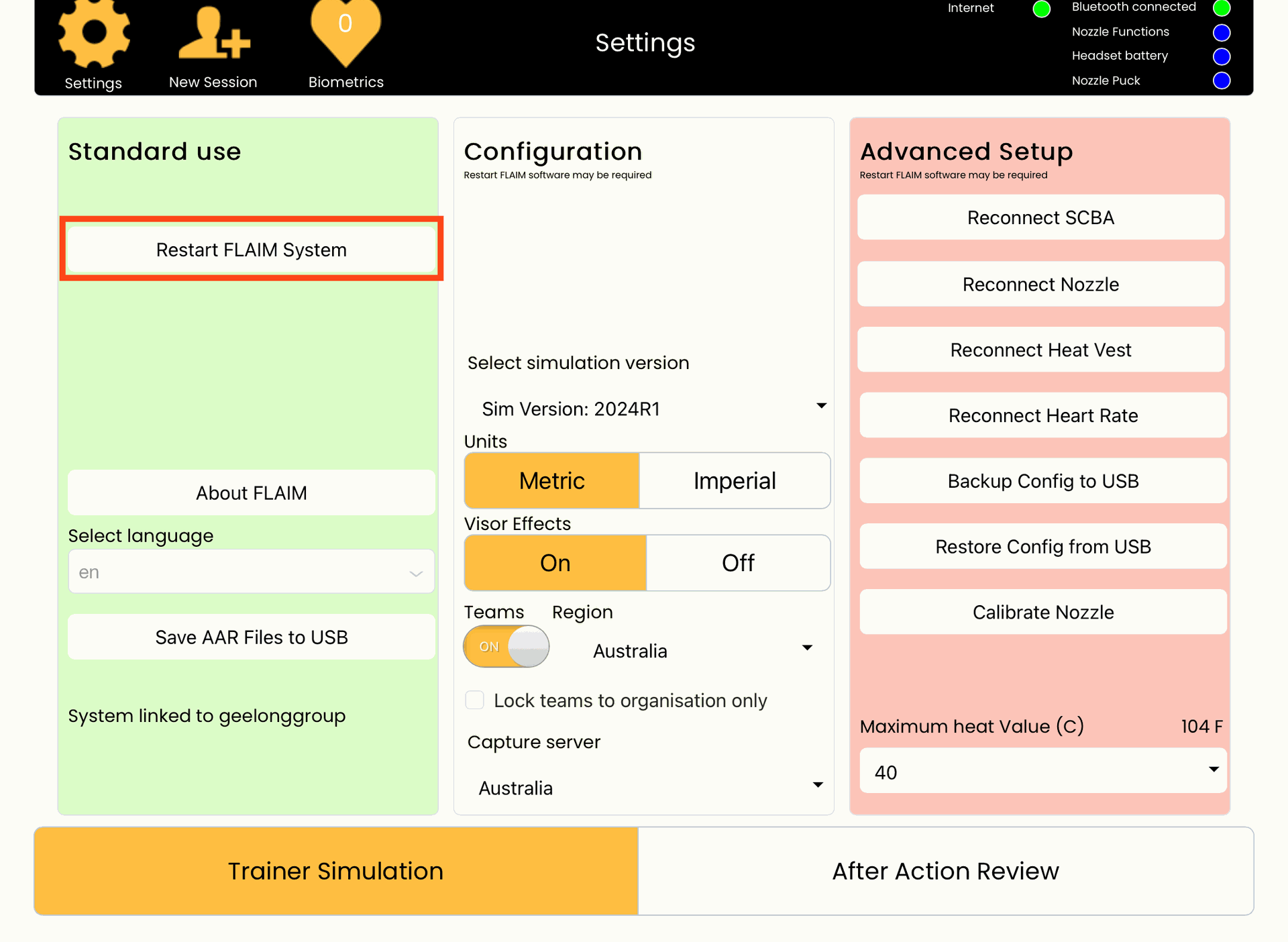

Now, select the option for Restart FLAIM System on the left side. Then, select the yellow Trainer Simulation button in the bottom left corner to return to the main instructor view.
If your student is using the wearable, you may select the heart icon labeled Biometrics in the top left corner.

Note: That the students Heart Rate will be displayed inside of the heart icon.

Once in the biometrics screen, you may track the students vitals in real time. When you are ready to start or stop another scenario, you may select the Close button on the bottom right to return to the main Instructor view.
